Cables Fail at Midnight: Robot Cable, Bellows and Dress-Pack Replacement Intervals

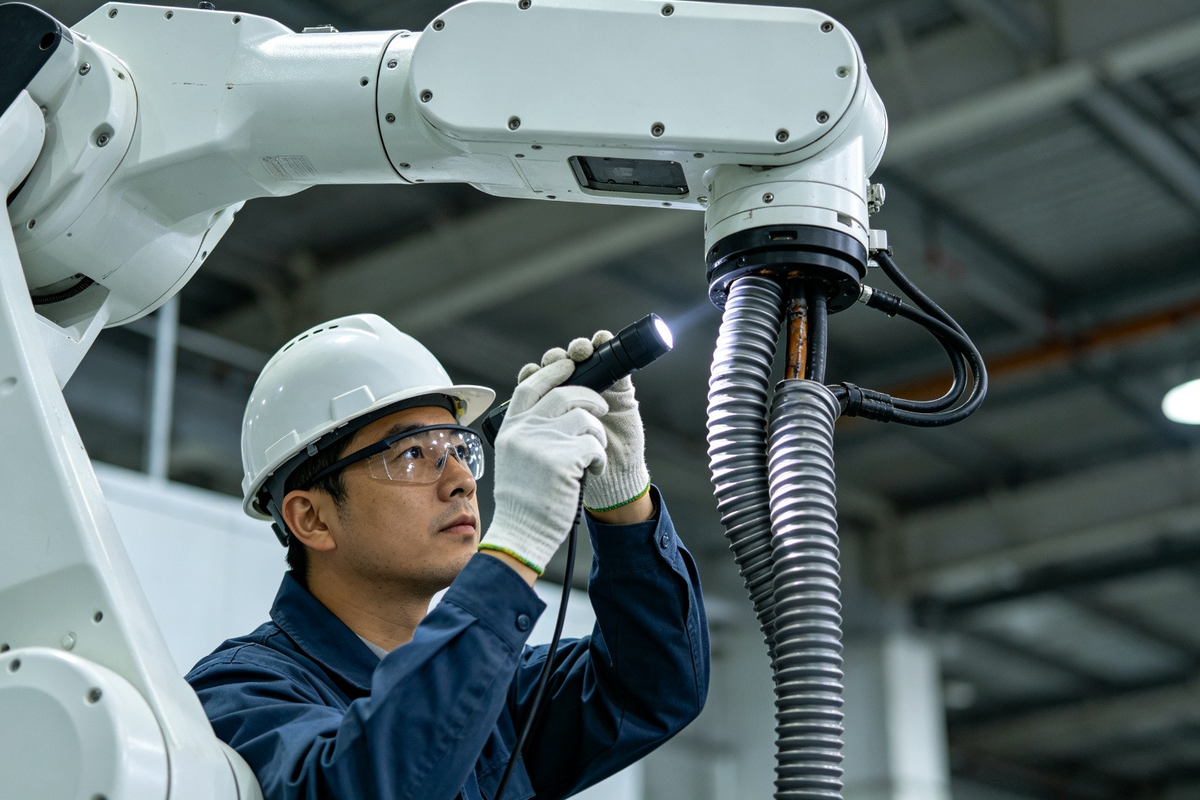

Figure 1. Inspecting the armored cable harness under the arm: fatigue is invisible until the machine stops.

The call came at 1 a.m. from a welding shop in Vietnam: the robot had stopped mid-part with a servo communication error, and the morning shift had a full schedule. The cause took an hour to find. A flexing cable inside the arm's dress pack had broken its shielding under years of constant bending, and the controller had locked out motion rather than trust a noisy signal. The shop lost the night shift, and the repair parts took days to arrive. Cable fatigue is one of the most common failure modes on welding robots, and it almost never fails during a convenient hour.

Why robot cables fail, and where

Every axis movement flexes the cables bundled along the arm, and welding robots flex more than most because the torch swings constantly. Over time the copper strands fatigue, the shielding cracks, and the machine starts throwing intermittent alarms before it finally stops. The vulnerable points are the dress pack along the forearm, the wrist area near the torch, and the entry point at the base of the arm.

The maintenance habit that catches fatigue early

A monthly visual check of the dress pack takes ten minutes: look for cracked shielding, flattened sections, discolored heat marks, and chafing where the bundle touches the arm. At the annual service, the harness gets a closer inspection, and any doubtful cable is replaced rather than defended. Plants that run this habit catch 90% of cable failures during planned downtime instead of at midnight.

How a tested used robot reduces the risk

Cable condition is exactly the kind of thing a proper refurbishment handles: worn cables are replaced new, bellows are renewed, and the machine is load-tested with the final harness in place. A buyer who asks 'how old are the cables?' is asking the right question, because the answer tells them how soon they will meet the night-shift failure. On refurbished units from ZOTRADE, fresh cables and bellows are part of the standard rebuild, so the midnight call is pushed years out.

A proper cable inspection goes beyond looking: flex the dress pack gently through the wrist's normal range and watch for signal drops or flickering alarms, check the strain relief where cables enter the controller, and verify that cable clips are not pinching the bundle. When replacement is needed, the lead time question matters as much as the part number. A supplier with harness stock and replacement cables for common FANUC, ABB and KUKA models can ship a cable that a regional dealer would quote at three weeks, which is the difference between a planned swap and a forced shutdown.

Ask for the cable and bellows replacement record on any used robot you are considering. The answer tells you how close you are to the 1 a.m. phone call.
